Powerful Bidirectional 11kW OBC DC-DC 250-450VDC | EV Charger
Powerful & Space-Saving Bidirectional 11kW OBC 3kW DC-DC Solution for Electric Vehicles | Cut Your Operational & Installation Costs

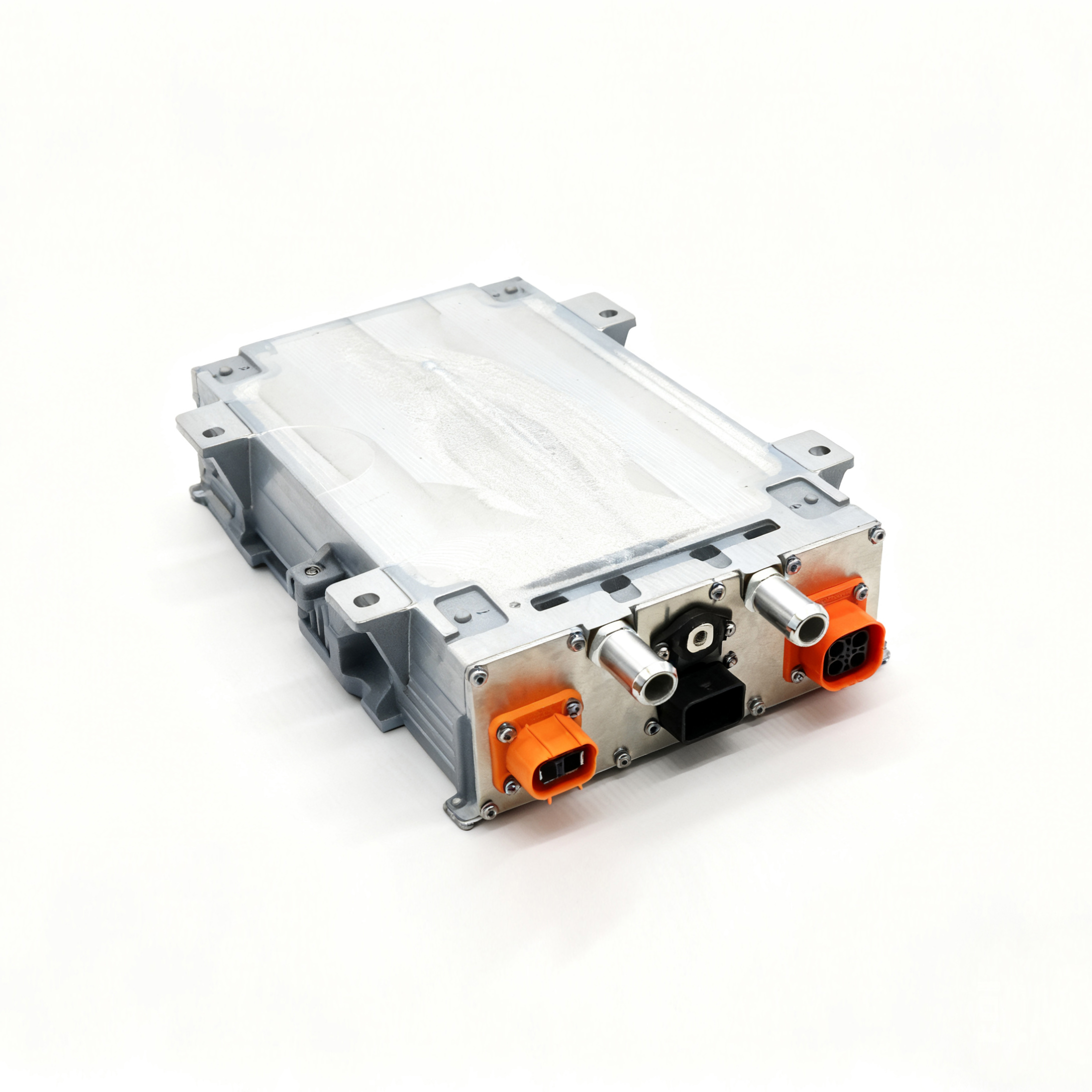

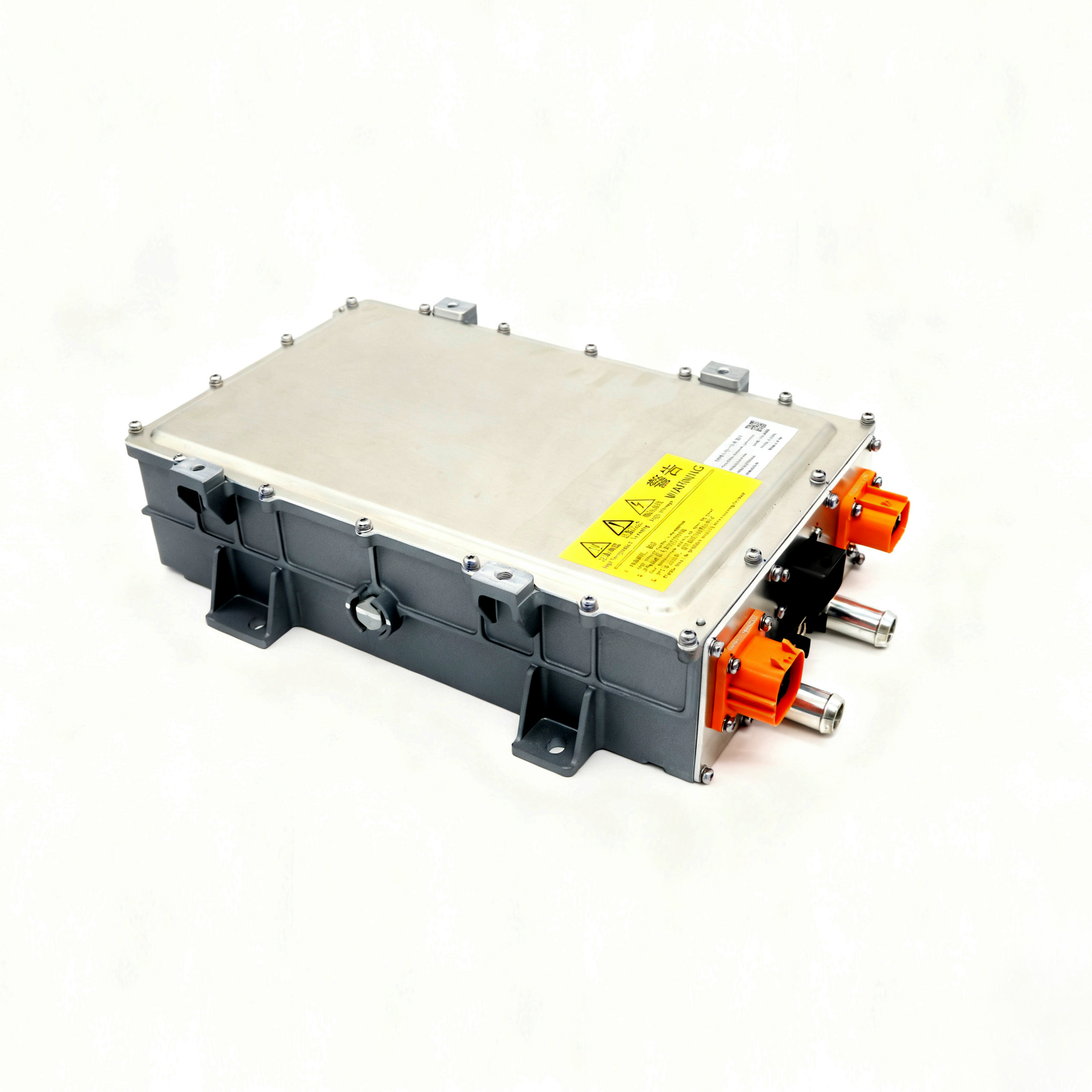

The Ovartech CAD112DF400-14302B bidirectional 11kw OBC DC-DC integrates a high-frequency 11kW battery charger and a 3kW DC-DC converter into one compact unit. This two-in-one bidirectional 11kw OBC DC-DC design effectively reduces installation space, product weight and wiring complexity, helping you lower the overall costs of inventory management, on-site installation and after-sales service.
The bidirectional 11kw OBC DC-DC is equipped with an intelligent charging mode, which automatically regulates the output voltage through CC/CV/cut off stages to match various EV battery requirements. Comprehensive protection functions are built-in, including short-circuit, over-voltage, over-current and over-temperature protection, ensuring stable and safe operation of the bidirectional 11kw OBC DC-DC throughout the charging cycle.
The integrated CAN-bus interface enables real-time data transmission, reliably sending charging status, interlock connection details, as well as disconnection and fault alarm messages to the Vehicle Control Unit (VCU) through the Battery Management System (BMS).
The CAD662DF400-14202B charger series, designed to work with the bidirectional 11kw OBC DC-DC, fully complies with international standards including SAE J1772 and IEC 61851. It achieves an IP67 protection rating, enabling stable operation of the bidirectional 11kw OBC DC-DC in harsh and demanding operating environments typical of electric vehicle applications.
| Model : | CAD112DF400-14302B |
| Power ： | 11KW+3KW |
| Input voltage ： |
304-456VAC 3 phase 176-264VAC 1 phase |
| Output current ： | 0-32A |
| Output voltage ： | 250-450VDC |
| DC-AC output ： | 220V 16A |
| Cooling ： | liquid-cooling |
| Dimension ： | 417*270*98mm |
| Weight ： | 12kg |
| IP rate ： | IP67 |
| Interface ： | CANbus |
 |
 |
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. or it is 6 weeks if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products?
A: We adopt digital control technology, which is convenient for remote upgrade and fully automatic production.
Q: What are your Engineering Testing and Validation capabilities?
A: We will respond to you within 2 hours and solve the problem within 24 hours.
Q: What are your terms of payment?
A: 100% prepayment.
Q: What is the MOQ (Mini Order Quantity)?
A: 1 unit.
Q: Do you accept customization?
A: Yes, OEM and ODM services are all supported.
Q: Will you provide a free sample before order?
A: Generally speaking, you need to pay for that.
Q: What is your sample policy?
A: We can supply the sample if we have the parts in stock, customers must pay the sample cost and the shipping cost.
Q: Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery, if necessary, we can send an inspection report before delivery.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customer’s benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
