Powerful 3.3kW OBC 1.5kW DC DC 2in1 Integrated Unit
Powerful 3.3kW OBC 1.5kW DC-DC 2-in-1 Integrated Unit | Reliable Solution for EV & Marine Manufacturers
The Ovartech CAD332DF400A-14152 is a high-frequency integrated unit that combines a 3.3 kW on-board charger and a 1.5 kW DC-DC converter in one compact package. This all-in-one design significantly reduces installation space, weight, and wiring complexity, helping lower costs related to inventory, installation, and after-sales service.
Key features:
- Wide AC input range of 85–265 V for reliable global deployment
- Intelligent CC/CV/cut-off charging that automatically adapts to various EV battery profiles
- Comprehensive protections: short-circuit, over-voltage, over-current, and over-temperature
- Built-in CAN-bus interface for real-time communication with BMS and VCU
- Complies with SAE J1772 and IEC 61851 standards
- IP67 protection rating for reliable operation in harsh EV and marine environments
This high-efficiency, robust solution delivers safe and economical charging performance for electric vehicle applications.
3.3kW OBC with 1.5kW DC-DC Specification
| Model : |
CAD332DF400A-14152 | 3.3KW OBC |
| Power : |
3.3KW+1.5KW |
| Input voltage : |
85-265Vdc |
| Output current : |
0-10A |
| Output voltage : |
200-450Vdc/13.8Vdc |
| Cooling : |
Liquid-cooling |
| Dimension : |
382x259x101mm; |
| Weight : |
7kg; 15.4lbs |
| IP rate : |
IP67 |
| Interface : |
CAN BUS/Enable control |

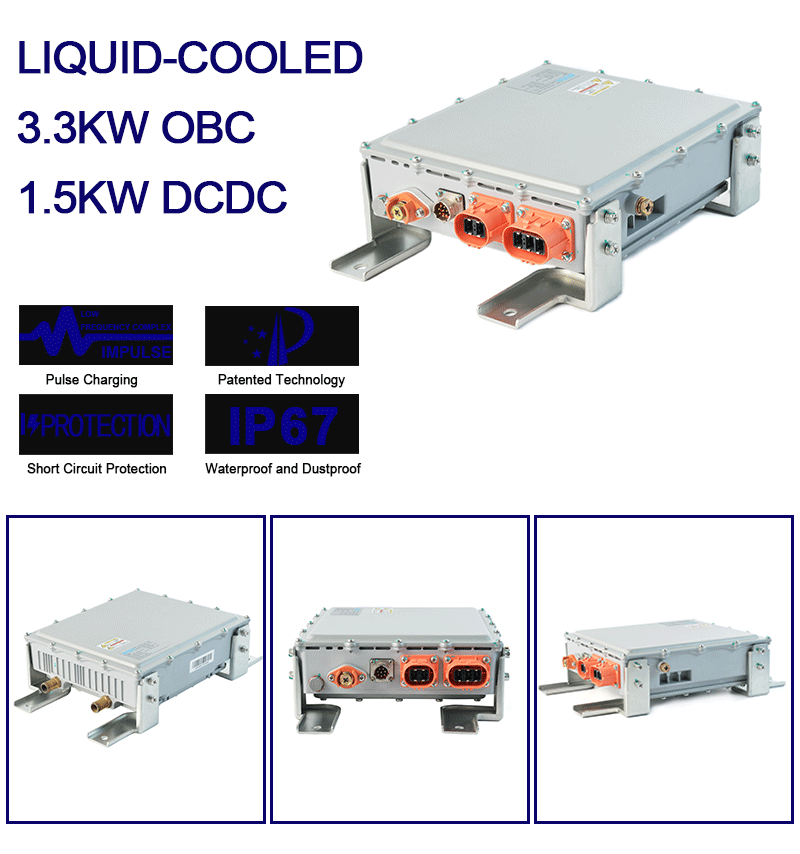

3.3kW OBC with 1.5kW DC-DC Details
