Powerful Bi-directional 6.6kW On-Board Battery Charger 2kW DC-DC 480V | High-Efficiency EV & Marine Power Solution

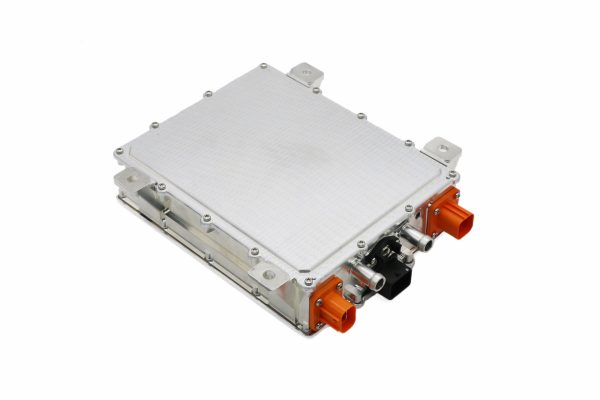

The Ovartech CAD662DF400-14202B is a high-frequency integrated power unit, combining a 6.6kW bi-directional on-board battery charger and a 2kW DC-DC converter in a single compact package. This all-in-one design optimizes space utilization, reduces overall weight and wiring complexity, effectively lowering costs associated with inventory, on-site installation and after-sales service for electric vehicle and marine equipment manufacturers.
This bi-directional 6.6kW OBC + 2kW DC-DC converter series is engineered to meet the stringent demands for efficiency, robustness and safety in electric vehicle battery charging applications. It supports a wide AC input voltage range of 85–265V, enabling seamless and reliable global deployment across diverse regional power grid standards. Its high-efficiency operating design minimizes energy loss, making the entire charging process more cost-effective for large-scale fleet and marine usage.
The unit features an intelligent charging mode that automatically regulates output voltage through CC/CV/cut-off stages to match different battery charging profiles. Comprehensive built-in safety protections are included: short-circuit, over-voltage, over-current and over-temperature protection, ensuring stable and secure operation throughout the entire working cycle without operational risks.
Equipped with a standard CAN-bus interface, the CAD662DF400-14202B enables real-time data transmission. It reliably sends charging status, interlock connection details, as well as disconnection and fault alarm messages to the Vehicle Control Unit (VCU) via the Battery Management System (BMS), supporting intelligent power management of the whole vehicle/ship.
The Ovartech CAD662DF400-14202B charger series is fully compliant with international automotive and marine standards including SAE J1772 and IEC 61851. Boasting an IP67 protection rating, it performs stably and durably in harsh and demanding operating environments typical of electric vehicle and marine applications, meeting the high-quality requirements of professional equipment manufacturers.
Model ：
CAD662DF400-14202B
Power ：
6.6KW+2KW
Input voltage ：
85-265VDC
Output current ：
0-22A
Output voltage ：
260-480VDC
Cooling ：
liquid-cooling
Dimension ：
340*280*80mm
Weight ：
8kg;
IP rate ：
IP67
Interface ：
CAN BUS/Enable control
FAQ
Q: Are you a trading company or manufacturer? A: We are a manufacturer.
Q: How long is your delivery time? A: Generally, it is 5-10 days if the goods are in stock. or it is 6 weeks if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products? A: We adopt digital control technology, which is convenient for remote upgrade and fully automatic production.
Q: What are your Engineering Testing and Validation capabilities? A: We will respond to you within 2 hours and solve the problem within 24 hours.
Q: What are your terms of payment? A: 100% prepayment.
Q: What is the MOQ (Mini Order Quantity)?
A: 1 unit.
Q: Do you accept customization?
A: Yes, OEM and ODM services are all supported.
Q: Will you provide a free sample before order?
A: Generally speaking, you need to pay for that.
Q: What is your sample policy?
A: We can supply the sample if we have the parts in stock, customers must pay the sample cost and the shipping cost.
Q: Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery, if necessary, we can send an inspection report before delivery.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customer’s benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
