Powerful High-Efficiency 22kW OBC 200-500Vdc | EV On-Board Charger

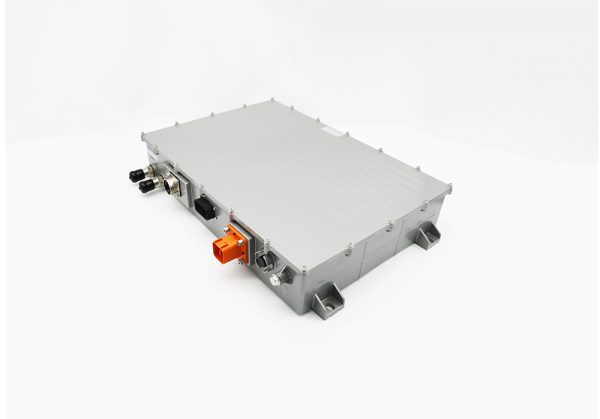

High-Efficiency 22kW OBC 200-500Vdc | Reliable EV On-Board Charger for Global Vehicle & Marine Manufacturers
The Ovartech CAD222DF-400A 22kW OBC 200-500Vdc series is engineered for electric vehicle and electric marine battery charging applications. Designed with high efficiency, robustness and operational safety as core strengths, it fully meets the stringent requirements of automotive and marine equipment manufacturers.
This charger features a wide AC input voltage range of 152–456V, supporting seamless global deployment across various regional power grid standards. Its high-efficiency charging design drastically cuts energy consumption, delivering greater cost-effectiveness for large-scale production and operation.
It comes with an intelligent charging mode, which automatically adjusts the output voltage via CC/CV/cut-off stages to suit a wide range of EV and marine battery charging profiles. Complete built-in safety protections are included: short-circuit, over-voltage, over-current and over-temperature protection, ensuring stable and secure operation throughout the entire charging cycle.
The integrated CAN-bus interface enables real-time data transmission. It reliably sends charging status, interlock connection details, as well as disconnection and fault alarm messages to the Vehicle Control Unit (VCU) through the Battery Management System (BMS).
The Ovartech CAD222DF-400A charger series fully complies with international standards including SAE J1772 and IEC 61851. Boasting an IP67 protection rating, it operates reliably in harsh and demanding working conditions typical of automotive and marine applications.
22kW OBC Specification
| Model : | CAD222DF-400A |
| Power ： | 22KW @ three-phase; 6.6KW @ single phase |
| Input voltage ： | 152-456Vac @ three phase 90-265Vac @ single phase |
| Output current ： | 54A max @ three phase 20A max @ single phase |
| Output voltage ： | 200-500VDC |
| Cooling ： | Liquid-cooled |
| Dimension ： | 550*403*101mm |
| Weight ： | 25kg |
| IP rate ： | IP 6K9K |
| Interface ： | CAN BUS |

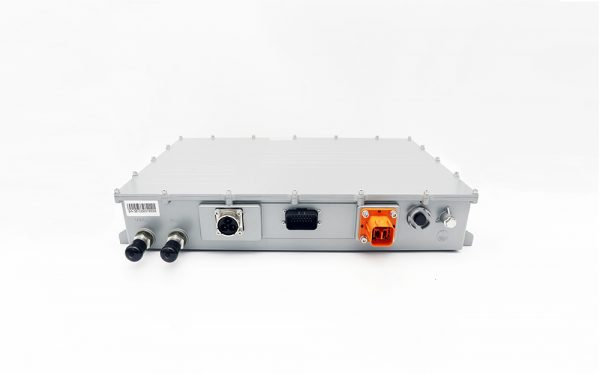

22kW OBC Detials
 |
 |
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. or it is 6 weeks if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products?
A: We adopt digital control technology, which is convenient for remote upgrade and fully automatic production.
Q: What are your Engineering Testing and Validation capabilities?
A: We will respond to you within 2 hours and solve the problem within 24 hours.
Q: What are your terms of payment?
A: 100% prepayment.
Q: What is the MOQ (Mini Order Quantity)?
A: 1 unit.
Q: Do you accept customization?
A: Yes, OEM and ODM services are all supported.
Q: Will you provide a free sample before order?
A: Generally speaking, you need to pay for that.
Q: What is your sample policy?
A: We can supply the sample if we have the parts in stock, customers must pay the sample cost and the shipping cost.
Q: Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery, if necessary, we can send an inspection report before delivery.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customer’s benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
